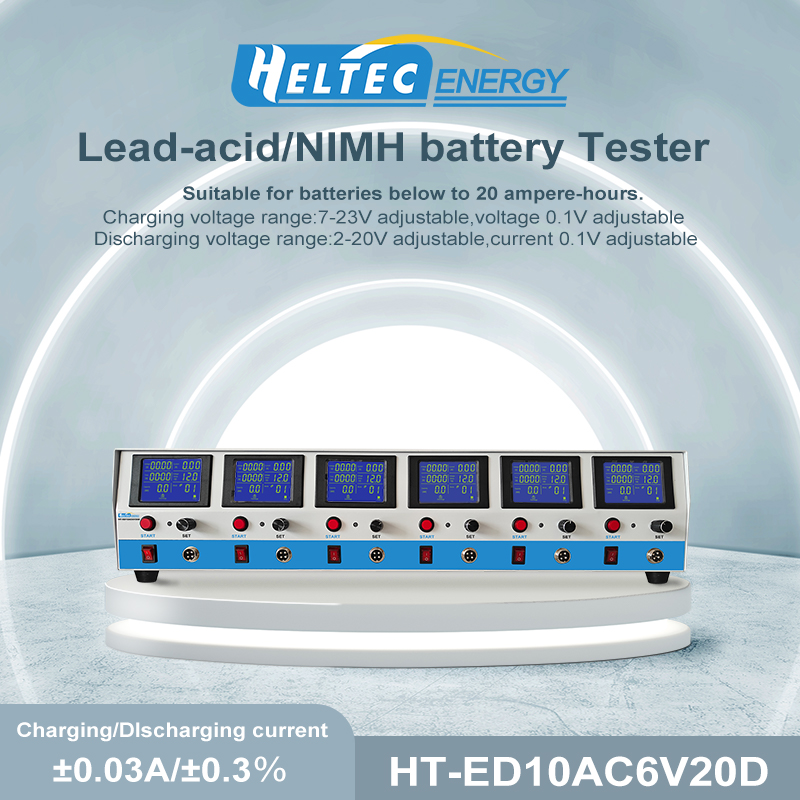

6 Channels with Display 7-23V Multi-function Battery Repair Instrument Charge 6A Discharge 10A

Original price was: $700.Current price is: $675.

2 products sold in last 8 hours
Selling fast! Over 20 people have in their cart
21 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

6 Channels with Display 7-23V Multi-function Battery Repair Instrument Charge 6A Discharge 10A

Product Information

Brand Name： Heltec Energy Origin: Mainland China
Warranty： One year MOQ: 1 pc
Number of channels 6 Input voltage: 220V
Charging voltage range: 7~23V adjustable, voltage 0.1V adjustable Charging current range: 0.5 ~ 5 A adjustable, current 0.1A adjustable
Discharge voltage range: 2~20V adjustable, voltage 0.1V adjustable Discharge current 0.5 ~ 10A adjustable, current 0.1A adjustable
Maximum number of charge and discharge cycles: 50 times Current and voltage Adjustment mode: knob adjustment
Single discharge maximum power: 138W Single charge and discharge maximum timing: 90hours
Current accuracy ±00.03A / ±0.3% Voltage accuracy ±00.03V / ±0.3%
Machine weight: 10KG Machine size: 66*28*16 cm
Application: Charging and discharging test and maintenance of electric vehicle batteries, energy storage batteries, solar cells,

Main Features:

1. Multi-Function Compatibility: This multi-functional battery test and equalization instrument is designed to work seamlessly with a variety of batteries, including electric vehicle batteries, energy storage batteries, and solar cells. Its voltage range is 7-23V and can accommodate a variety of battery configurations, making it an essential tool for professionals and amateurs alike.

2. Powerful Performance: With a maximum charging current of 6A and a maximum discharging current of 10A, our battery test and equalizer can handle demanding tasks with ease. This feature ensures that you can perform thorough testing and maintenance without impacting performance.

3. Independent Channel System: One of the outstanding features of our equipment is the independent system and display of each channel. This unique design allows users to conduct inspections directly with the instrument, providing real-time data and insight into the health and performance of each battery. No more guesswork – monitoring has never been easier!

4. User-Friendly Interface: Whether you’re diagnosing a problem, performing a routine inspection, or performing a complex repair procedure, the intuitive display allows you to easily navigate functions. Clear visual indicators help you evaluate performance metrics at a glance, streamlining your workflow.

5. Improved Efficiency: Designed with the user’s needs in mind, this instrument simplifies the testing and maintenance process, allowing you to focus on what matters most – keeping your battery in top condition. By providing accurate data and insights, it enables you to make informed decisions about battery care and management.

Mode Overview

Pattern coding Function

0

 Historical circular data query mode

1

 Capacity test

2

 Standard charging

3

 Start with discharge and end of charge, 1-50 cycles

4

 Start charging and end charging with 1-50 cycles

5

 Start with discharge and end with 1-50 cycles

6

 Start charging and end discharging, cycle times 1-50

7

 Networking mode

8

 Pulse Repair Mode

9

 Charge → Pulse Repair → Discharge → Charge

Usage Method

Connect the machine to the 220V power supply and turn on the corresponding power switch. Then,you will hear a “ticking”sound and see the LCD screen light up. Then enter the instrument into the correct chain to receive the test battery (red clip to the positive battery,black clip to the negative battery), and the LCD screen will display the current battery voltage.

  •  Simple mode and professional mode switching method

The default setting interface mode is simple when the instrument is powered on.The current battery is displayed in the voltage selection bar on the LCD screen,and battery selection options are provided in the simple mode.Just select the battery from 6V/12V/16V and charging current and discharge current.The rest discharge parameters are automatically set according to the battery characteristics.The simple mode is good for beginner users who do not know much about the battery characteristics.

If you are a professional user, you can switch the operation mode to professional one when there is a higher demand.The switching method is: In the stopped state, press the “set” knob for 3 seconds and then release. After hearing the long “ticking” sound alarm, to the mode into professional one. In the professional mode, the battery charging voltage, charging current, discharge voltage, discharge current can be arbitrarily set.

  • The difference between simple mode and professional mode

Application:

HT-ED10AC6V20D multi-functional battery repair instrument is widely used in battery testing, battery maintenance and other fields, used for charging and discharging test and maintenance of electric vehicle batteries, energy storage batteries,solar cells, etc. The equipment can provide comprehensive battery testing and maintenance services for battery manufacturers and users.
